Lionik Li-ion Cylindrical Cell:
Lionik Li-ion Cylindrical Battery Cell Table
Model
Voltage
D*H
Weight
Capactiy
Quantity
 LKLIC18650HP(Power)
3.7V
Φ18*65mm
43±1 g
1300mAh
100 Per/Case
 LKLIC26650HP(Power)
3.7V
Φ26*65mm
93±1 g
3000mAh
100 Per/Case
LKLIC18650
3.7V
Φ18*65mm
45±1 g
2150/2050mAh
100 Per/Case
LKLIC18500
3.7V
Φ18*50 mm
32±1 g
1400/1300mAh
100 Per/Case
LKLIC17670
3.7V
Φ17*67 mm
39±1 g
1400/1300mAh
100 Per/Case
LKLIC17650
3.7V
Φ17*65mm
37±1 g
1300/1200mAh
100 Per/Case
LKLIC17500
3.7V
Φ17*50 mm
28±0.5 g
1100/1000mAh
100 Per/Case
LKLIC17335
3.7V
Φ17*34.5mm
19±0.5 g
700/600mAh
100 Per/Case
LKLIC14500
3.7V
Φ14*50 mm
21±0.5g
750/700mAh
100 Per/Case
LKLIC14430
3.7V
Φ14*43mm
18±0.5 g
700/650mAh
100 Per/Case
LKLIC10430
3.7V
Φ10*43mm
9.5±0.5 g
320/330mAh
100 Per/Case
LKLIC14180
3.7V
Φ14*18mm
6.5±0.3 g
120mAh
150 Per/Case
LKLIC14160
3.7V
Φ14*16mm
5.8±0.3 g
100mAh
200 Per/Case

Lionik Li-Ion Cylindrical Battery:

Features:

High energy density,energy volume density is up to 370wh/L,specific energy is up to 150wh/kg;
High voltage and 3.7V of average voltage.It is the 3 times that of Ni-Cd and NiMh bettery;
Excellent charge and discharge cycle characteristics. Low self discharge rate.
Wide operation temperature from -20°C to +60°C;

Applications: Portable electronic devices,such as camera,flashlight,etc.

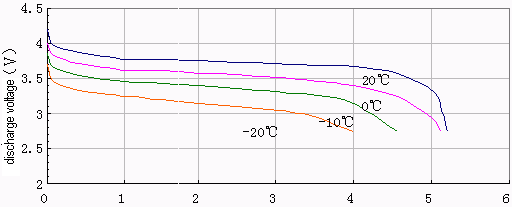

Performance (Li-ion Prismatic Battery,Li-ion Cylindrical Battery) Discharge Curve at Various Temperature:
charge: 4.2V/1CmA/2.5h,temperature: 23? ,discharge: 0.2CmA/2.75V

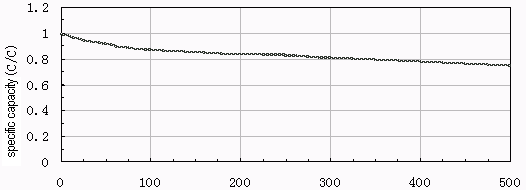

Cycle Life Curve: charge: 4.2V/1CmA/2.5h discharge: 0.2CmA /3V temperature: 23?

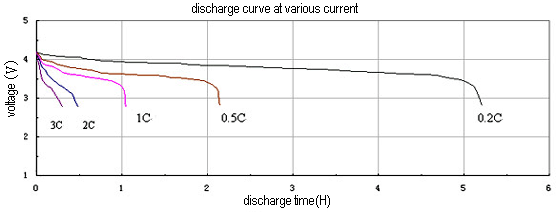

Discharge Curve at Various Load, charge: 4.2V/ 1CmA/ 2.5h temperature: 23?

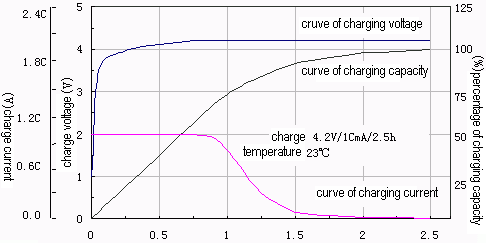

Curve of Charging Feature:
